Quanta SE

Built for global roads

Swappable Batteries

Powered by Sun Mobility

AIS – 156 / Amd – III / PHASE – II Complied Battery

Battery - Sun Mobility
Chemistry - NMC
Battery Voltage - 48 Volts
Battery capacity - 44 Ah
Battery usage energy - 1820 Wh
Certified ARAI Range - 90 Kms
Max No. of Batteries - 1
Top speed - 55 km/h
Peak Power - 2.17 KW | Nominal Power - 1.4 KW

Highlights

Chassis - Ribcaged Tubular Chassis
Waterproofing - IP67 – Waterproof Electrical Components
Design - Comfortable & Ergonomic Design for Better Control
Wheels - 17 inches – Wheels with High Load Capacity
Battery System - Swappable Battery System

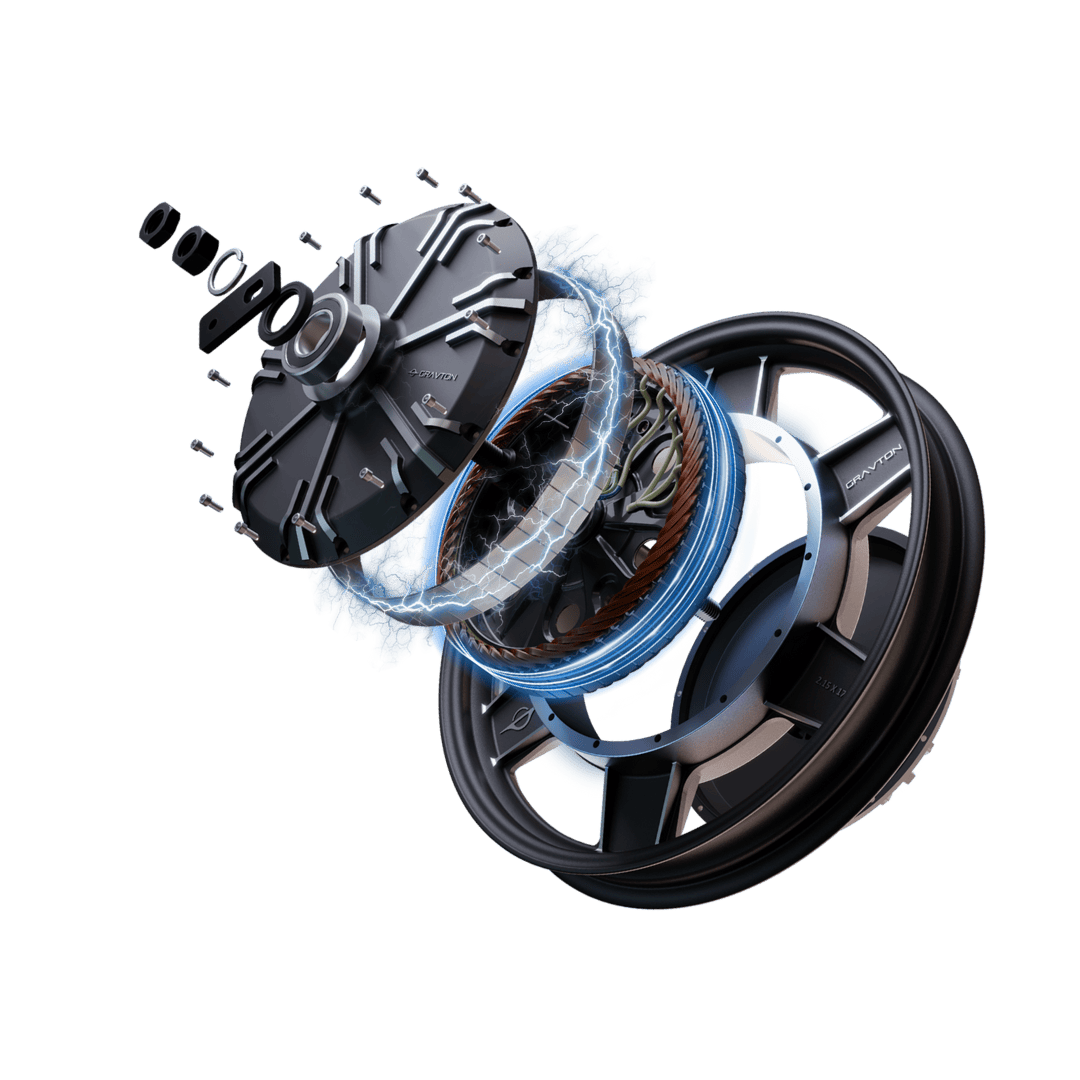

Motor - In-House Designed, Developed & Manufactured – 3 KW Hub motor

Technical Specifications

Kerb Weight - 103 kgs
Wheelbase - 1260 mm
Ground Clearance - 190 mm
Vehicle Dimensions (L x B x H ) - 1986 x 783x 1249 mm
Front Tyre, Rear Tyre - 80/100 – R17
Front Brake - 240mm disc with CBS | Rear Brake - 220mm Disc
Motor - BLDC – Hub Motor
G V W R - 270 Kgs
Riding Modes - Eco, City & Sport
No. of Batteries - 1
Aux Battery - 12 Volts Lead Acid | Aux Battery Charger - On Board

Warranty

Enjoy your Quanta SE with a 3 Years/40,000 kms of vehicle warranty

Built to Last!

World's first rib caged chassis built to safeguard and secure all the internal components in all scenarios. The solid-body frame provides toughness to endure any terrain, making it durable, and minimal moving parts make it more reliable.

LED Lighting

Advanced LED-Lighting and Indicator systems

High Load Capacity

17 inches Wheels with High Load Capacity
